Example for an electrochemic glass

grasshopper honeybee
1

Hi Ladybug Tools community, I hope you’re all doing well.

Could anyone share a Grasshopper (GH) file demonstrating electrochromic glass controlled by an illuminance (lux-based) strategy?

Thank you in advance!

2

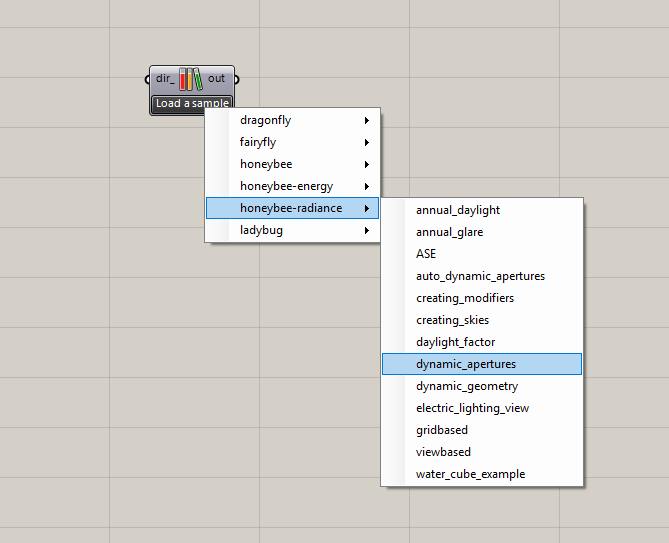

Assuming you want this for a Radiance daylight simulation, the dunamic_apertures sample has the basics to get you started:

image669×543 14.4 KB

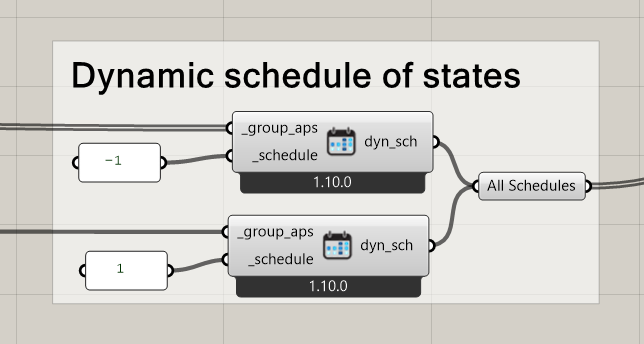

You’ll just want to create a control schedule here that helps you hit your target illuminance:


3

Thank you very much @Christ, today I consulted the dynamic_apertures.gh example, it helped me as a basis for building my model
