Hi! is there any tutorial available that shows us how to make surfaces adiabatic? Can anyone help?

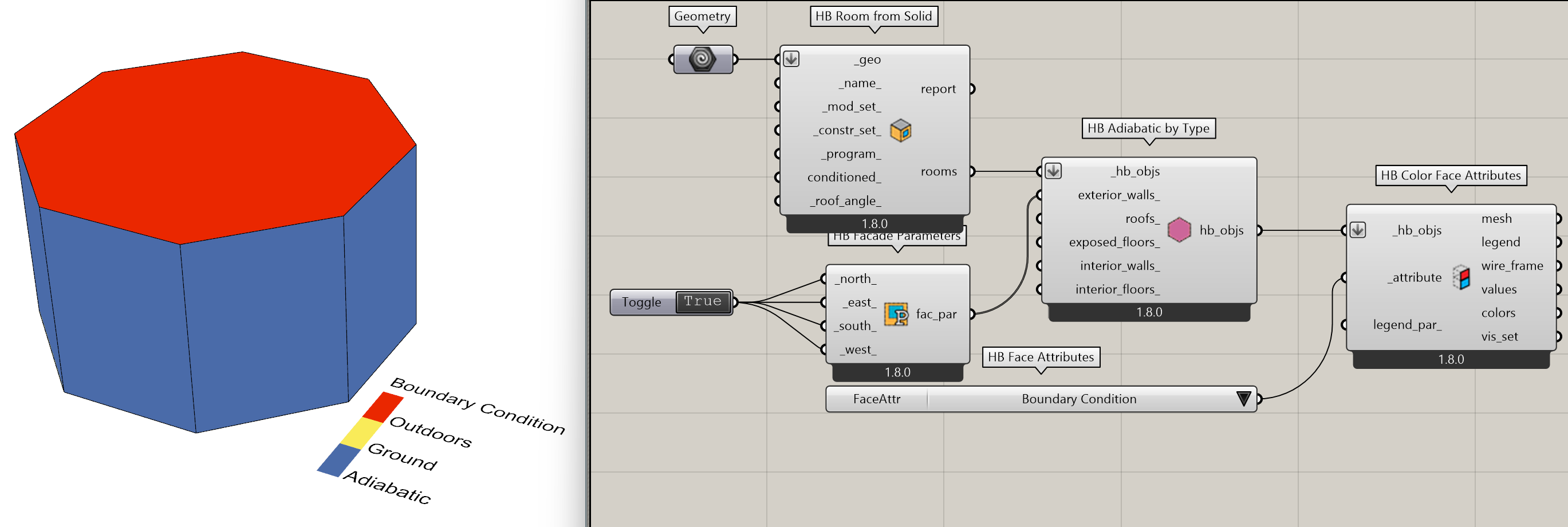

You can get this result though the “HB Adiabatic by type” or with the boolean toggle on the “HB Solve Adjaceny”, and you can verify your results using the visualization tools such as HB Label Faces with the attribute Boundary Condition with the HB Face Attributes component.
1 Like
there is one question i would like to ask. so I am running a shoebox model to analyze the effect of WWR on different cardinal directions and i want to make all surfaces adiabatic except for the one that has the window on it. any tips on how i do it?
Hi !
For that I use the component HB properties by guide surface (see on caption below).
- For rooms input you put your model.
- For guide input, the surfaces that you want adiabatic (me I use a Dynamic geometry pipeline from human plugin but you can assign directly the surfaces or Brep that you want to convert)
- For bc input, you need to put Adiabatic as shown below
I hope it will help !
