Customize the output of Visualization Set

gogog · February 3, 2023, 9:36am

Hi, LBT users,

Is there any way to customize the output of visualization set?
For example, with the hourly plot visualization set, I just want to show the mesh and borders, no legend and title, is it possible?
Thanks for your time!

MassimilianoBusnelli · February 3, 2023, 12:18pm

Hi,
I do it like this:
. I turn off the hourly plot,
. I connect the custom preview with swatch data to the edges,
. I connect the mesh container to the mesh

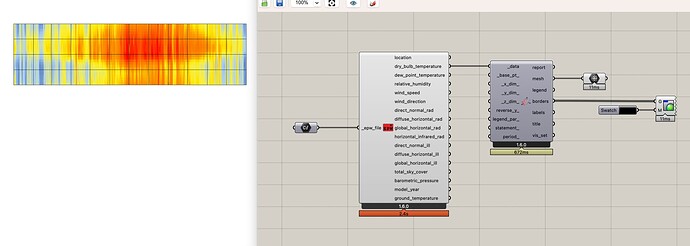

Like this:

Best,
Massimiliano

gogog · February 3, 2023, 1:42pm

Hi Massimiliano

Thanks for the reply.
What I mean is how to using the new ladybug component - Preview Visualization Set to filter the content.
Thanks.
