Debugging "The following sub-faces were not matched with any parent Face"

ladybug-tools
21

@Rotimy I believe you have correctly applied all the necessary steps, now the bad apertures (one at a time I believe) will be extruded so they can be identified and fixed on the rhino side of the model. Once all of the bad apertures have been fixed, the warning message will disappear like below
bad_aperture

22

Great, thank you so much.

23

Hi, I will appreciate help with this. I created the roof of this model from Rhino as solid and I converted it to HBroom. I went further to intersect this “roofroom” with the existing model. I introduced adjacency between the roof and the model. The challenge I have is that floor of the attached roof is reflecting as external floor instead of showing as ceiling. I attached my script below as well. How can I convert the external floor to ceiling?


This is my script. The zone marked red is where I did the adjacency. Thank you in advance.

image1921×856 306 KB

24

Hi everyone!
I have been able to resolve my model and I decided to check the model with HB validate model and I have one face out of plane as shown in the image below. What can I do to resolve this? My tolerance is at 0.01 and angle at 1? Thank you advance

image1279×650 75.5 KB

25

I have already put the code and add the ‘‘a’’ to the HB subface output. However, I still get problem with the extrude. I have already extrude it but still have an error message that said ‘‘1. The following sub-faces were not matched with any parent Face:
Aperture_52516133_0
Aperture_52516133_1
Aperture_52516133_2
Aperture_52516133_3
Aperture_52516133_4
Aperture_52516133_5’’

can someone help me? Thank you

26

@franciszen are you able to share the model? it can be via PM. I’ll take a peek at what’s going on if you’d like

28

Can I have your email so I can send my model to you?

29

I want to share the model but the system said that new member can not upload a file :frowning:

30

@franciszen trevor@unconstraineddevelopment.com

31

Hi all, I am facing a similar issue. In my case the window surfaces are planar and on top of the wall surface but I’m getting the same error. While few of the windows are working, most of it are getting error. I tried the code as well, but it did not show any problematic windows. Could someone please help me with this.

32

@VidyaR can you take a picture of the open editor for the component, specifically the part with the extra code in it as well as the exterior of the component.
best
-trevor

33

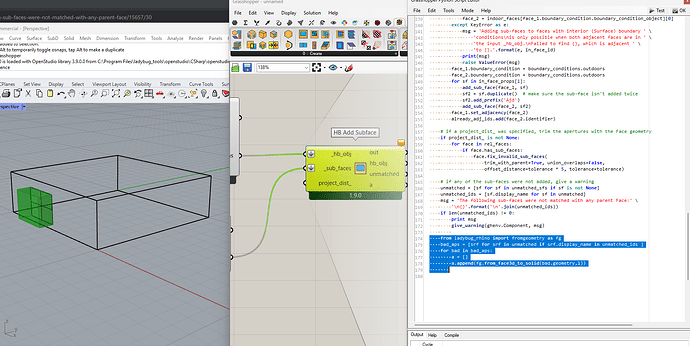

Hey @VidyaR try this:


image1761×885 226 KB

dont forget to add the “a” output and correctly indent the codeblock to the end of the components code!

@chris should we add this to the component?

34

Thanks, @TrevorFedyna.

The reason why the component has an unmatched output is so that you can connect it to a component like HB Visualize All and see the problematic sub-face geometry.

So I don’t think your extra code is needed anymore now that there is an unmatched output.
