Geometry Preparation for simulation

rsalelwani · April 3, 2018, 12:08am

Hello There,

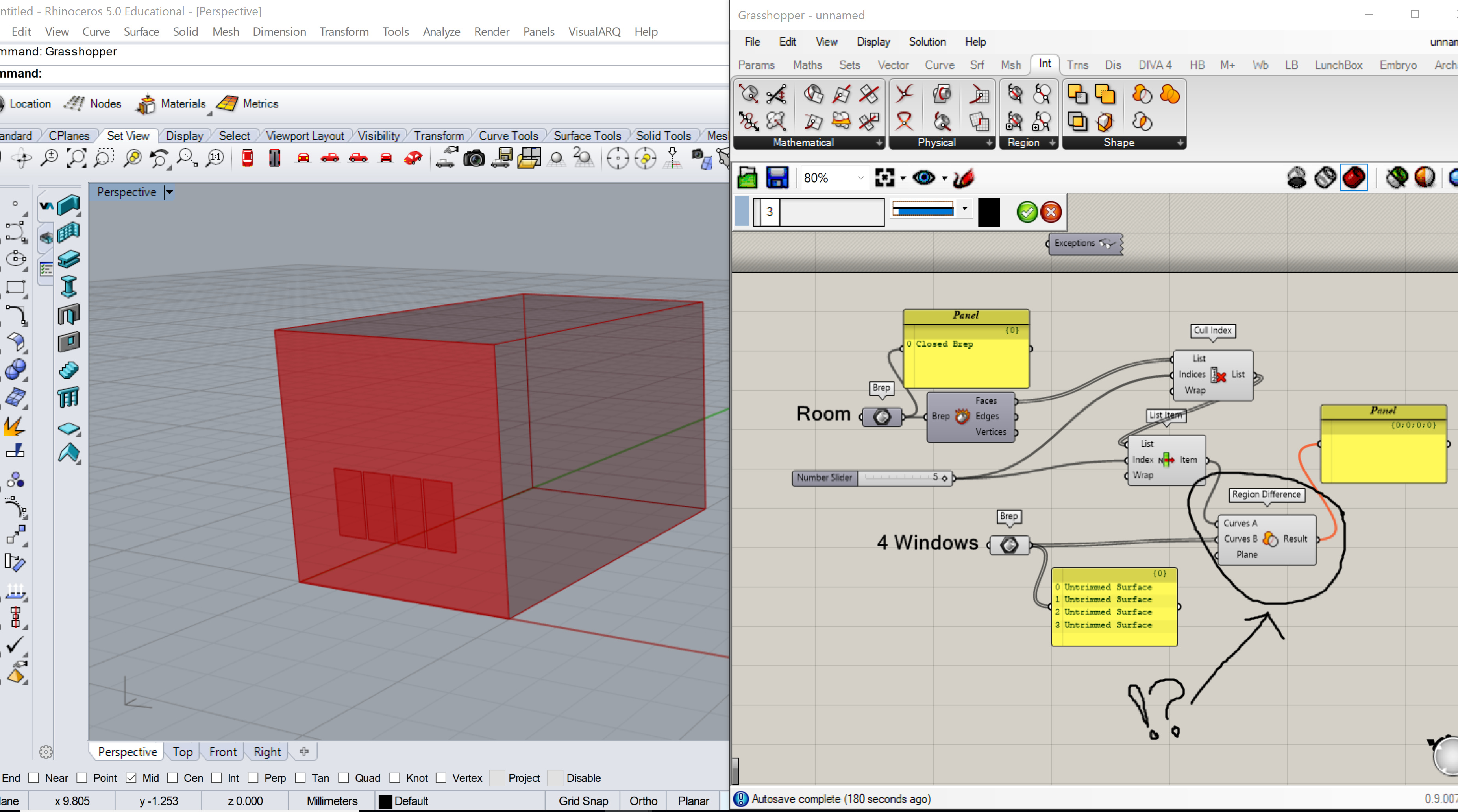

I’m following Mostapha’s Honeybee work (Honeybee_Grid-based_Daylight_Simulation_Example_III) however, it’s used 4 windows instead of 6 windows. The problem is when I added “Region Difference”, its result gives nothing (see image)

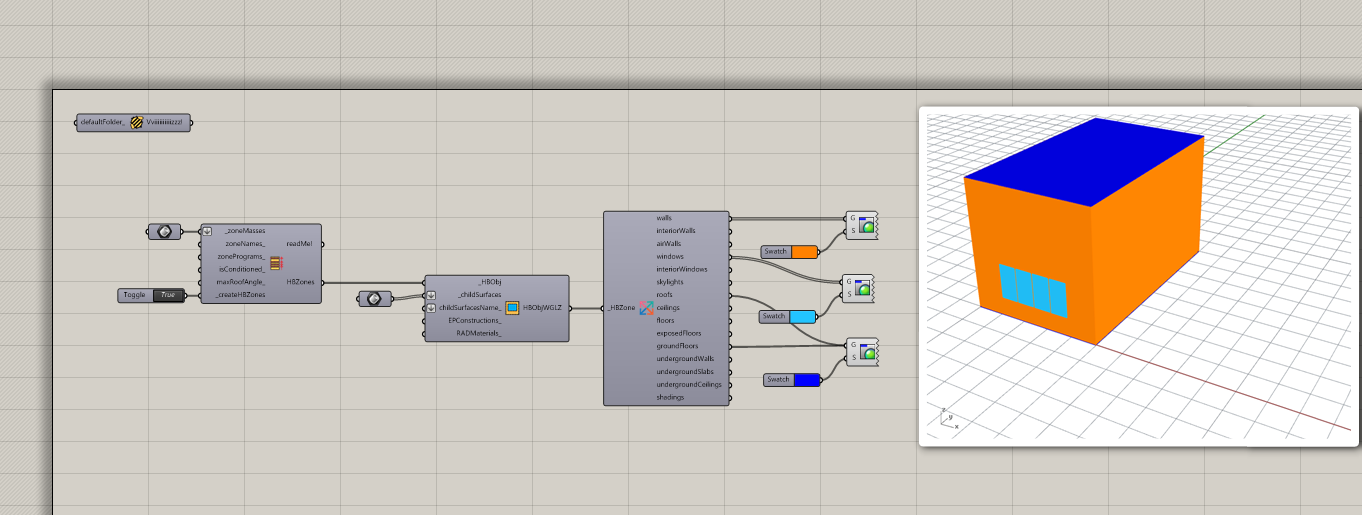

. See the following image for Mostapha
Is that a bug? GH file is uploaded.unnamed.gh (17.0 KB)

Thanks,
Raed

devang · April 3, 2018, 5:50am

Hi @rsalelwani,
You windows were not co-planar to the wall you were trying to assign them to. I fixed that.
zone.gh (112.4 KB)

rsalelwani · April 3, 2018, 1:00pm

Thanks for replying Devang,

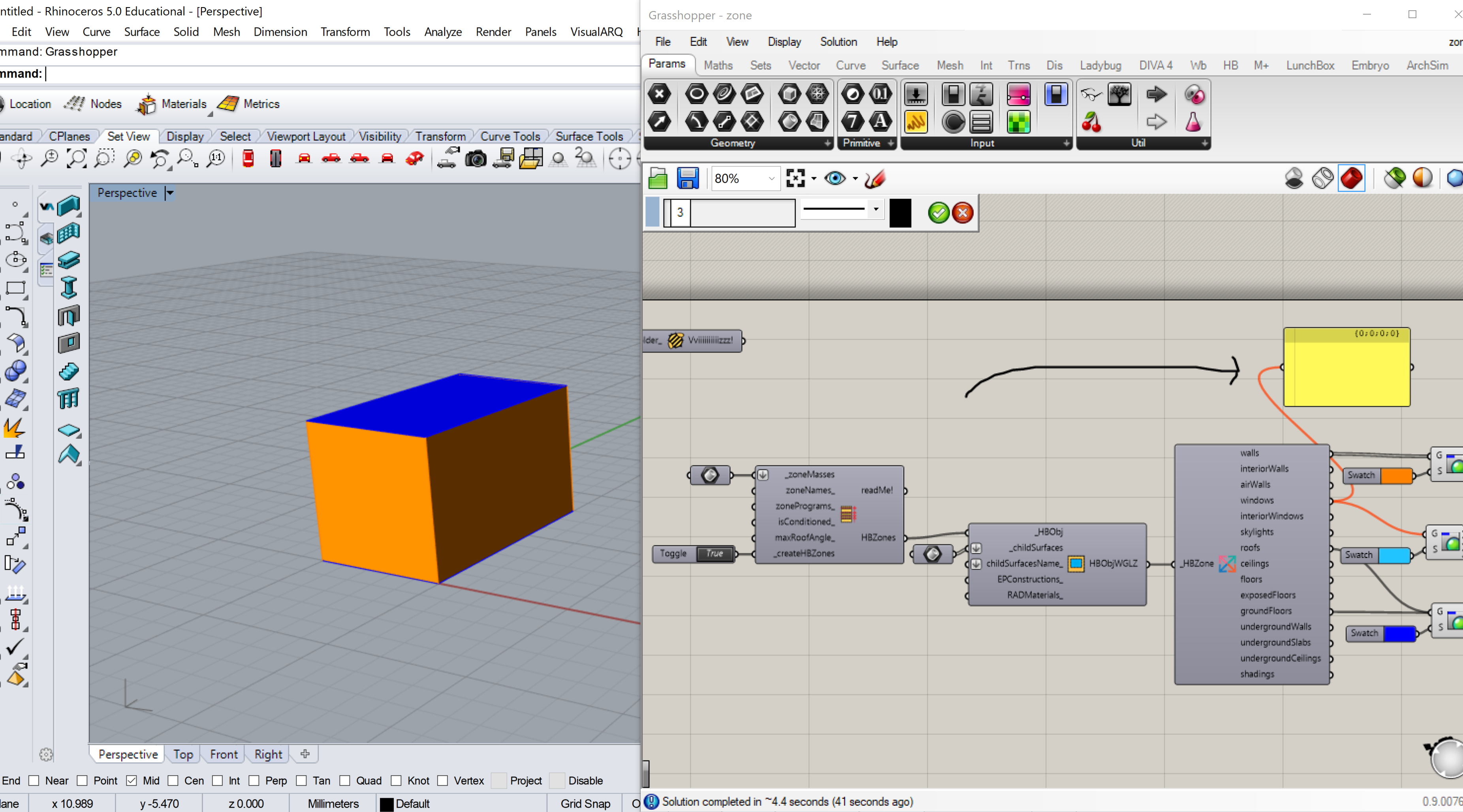

The window is still not recognized (see image)

devang · April 3, 2018, 1:03pm

Please check absolute tolerance in Rhino in Tools>Options>Units>Absolute units. Mine is 0.01 and units is meters.

rsalelwani · April 3, 2018, 2:42pm

Thanks a lot Devang! Now it’s working!!

Regarding for Mostapha’s work, he didn’t assign the windows and when he used “Region Difference”, it’ works but for mine is not! any explained!

devang · April 3, 2018, 3:29pm

I think the culprit could be the non planarity of the wall and the window goemetry.
