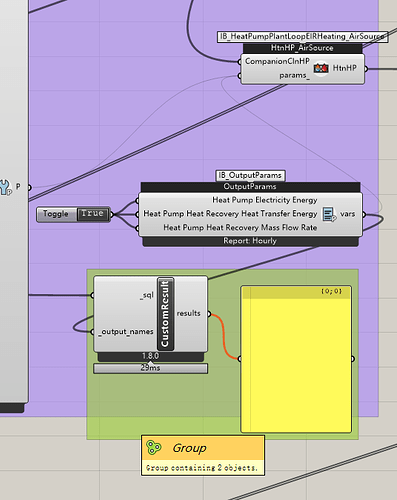

Hi guys，I’m trying to build a system: PV+SHW-ASHP-Low tempratuer radiant floor . I pieced them together and found that it could export rooms energy result (by use ideal air system I think ) ,but have no result with every part of my“PV+SHW-ASHP-Low tempratuer radiant floor”：Pic1

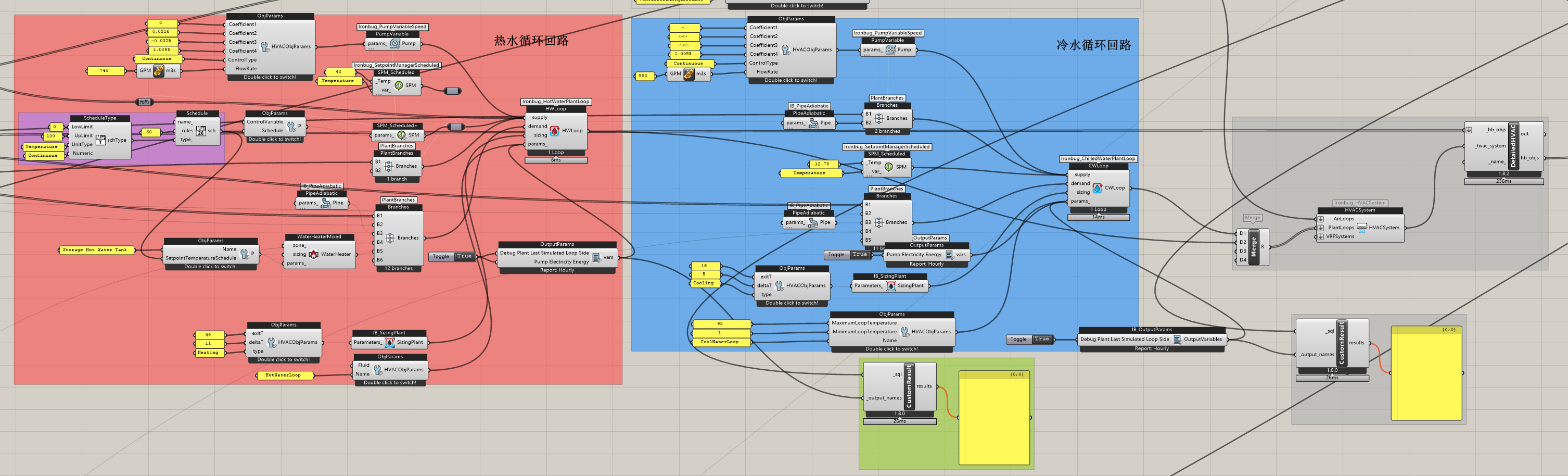

I uesd the ASHP template in “IB HVAC Templateds”, and here are my settings for it:Pic2、3

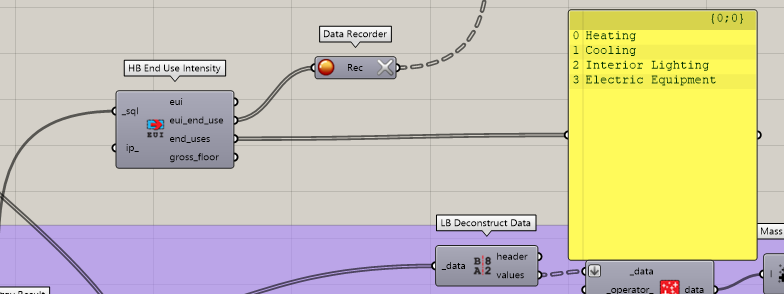

This pic is about the setpoint:Pic4

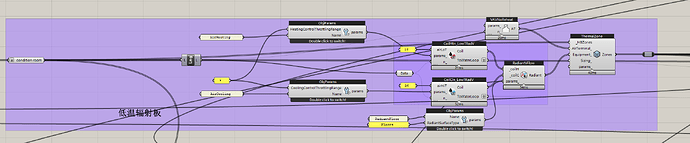

This pic is the setting for radiant floor:Pic5
I consulted some related posts in the forum to build this system. Until now, I accepted no Error in all components, this big system could run and export some results with ideal air system, but my system was no data in them so I feel like it’s not working properly. Please give me some advices, I would be very grateful!
0729-forum.gh (650.7 KB)

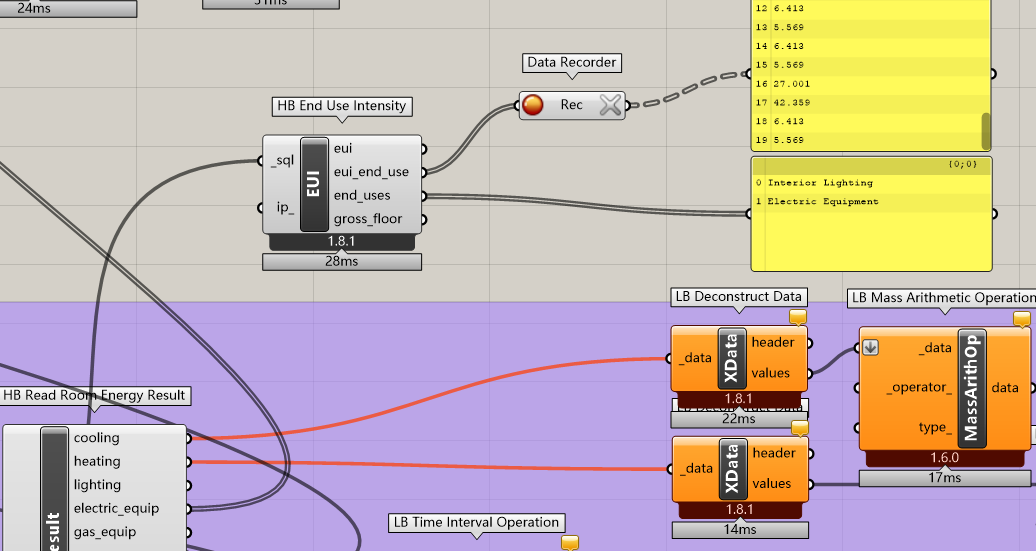

Hi Trevor, thank you very much for your reply. I just found out that I can upload files.Here are my files.I used two rooms to test my system,but I found they totally lost their heating and cooling energy consumption(with my ASHP system),just like this:

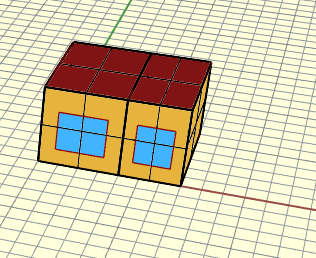

The geometry is not internalized, so I cannot run your specific model, but I did a very simple two-adjacent model to understand why you are facing that challenge.

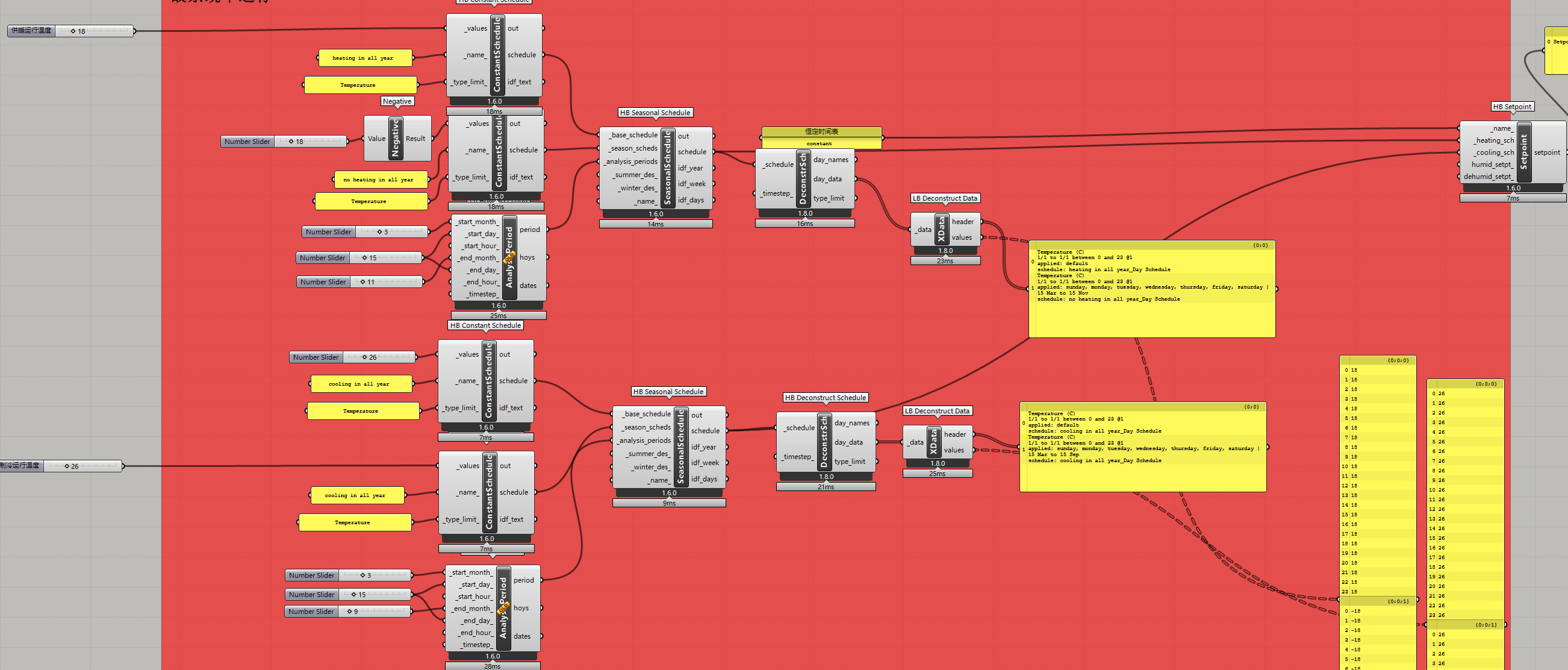

First, the output was without Heating and Cooling using IronBug. Then I replaced the IronBug with an IdealAir, and it appears that the simulation now includes heating and cooling, as shown below.

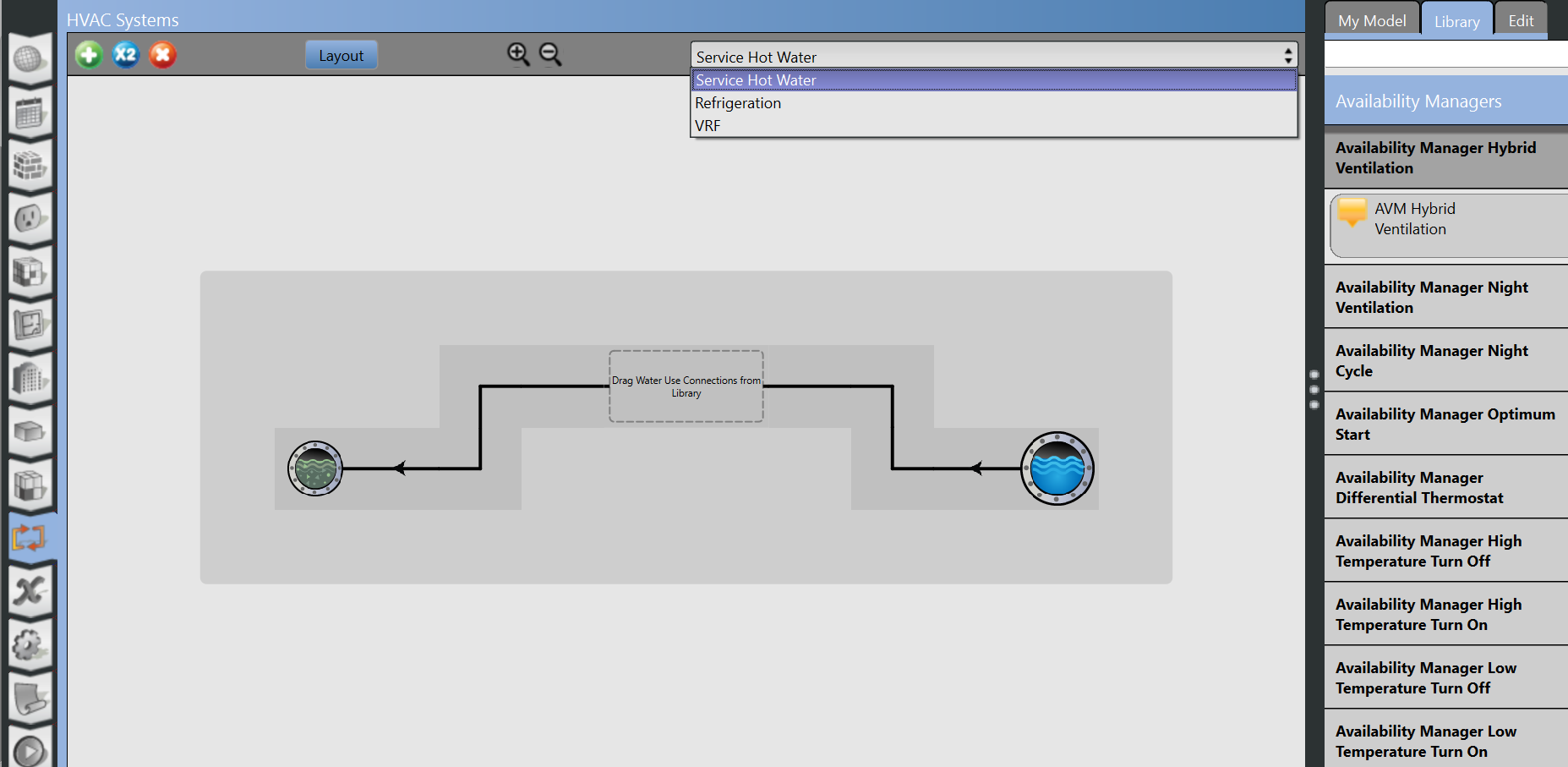

Then I rerun your simulation with my geometry using IronBug detailed HVAC, I now see that the Detailed HVAC in your OSM file is not shown, and actually, you do not have detailed HVAC
I suggest manually replacing all the IB components with the new updated IB and the new updated LB, and see what happens. Probably the challenge will be solved
