How do I add a HB Glass radiance modifier to a HB Aperture that is created by ratio on the solid face? Please see the screenshot attached.
Hi @deepthi.ravi there is a component called HB Apply Window Modifier in 1::Modifiers which will allow you to add the modifier after the apertures by ratio component.
I hope that helps
-Trevor
3 Likes
Thank you so much. That helped.
1 Like
I have a follow-up question on this.
In the case where a glass/window construction or window modifier is not applied, what does the model assume as the U-value, Transmissivity, G value, etc? Where can I find that information on its inbuilt assumptions on the glass made by the ‘apertures by ratio’?

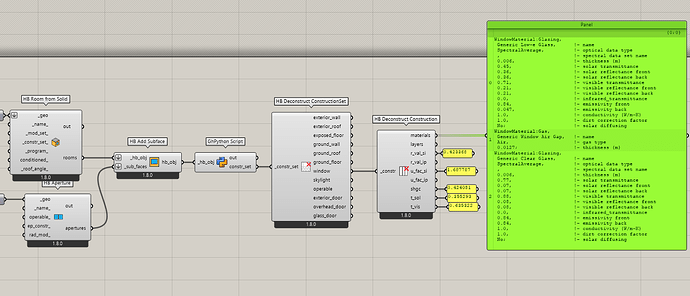

@deepthi.ravi here is a scene breaking down the default window construction set
the E+ object text from the window:
WindowMaterial:Glazing,
Generic Low-e Glass, !- name
SpectralAverage, !- optical data type
, !- spectral data set name
0.006, !- thickness {m}
0.45, !- solar transmittance
0.36, !- solar reflectance front
0.36, !- solar reflectance back
0.71, !- visible transmittance
0.21, !- visible reflectance front
0.21, !- visible reflectance back
0.0, !- infrared_transmittance
0.84, !- emissivity front
0.047, !- emissivity back
1.0, !- conductivity {W/m-K}
1.0, !- dirt correction factor
No; !- solar diffusing
WindowMaterial:Gas,
Generic Window Air Gap, !- name
Air, !- gas type
0.0127; !- thickness {m}
WindowMaterial:Glazing,
Generic Clear Glass, !- name
SpectralAverage, !- optical data type
, !- spectral data set name
0.006, !- thickness {m}
0.77, !- solar transmittance
0.07, !- solar reflectance front
0.07, !- solar reflectance back
0.88, !- visible transmittance
0.08, !- visible reflectance front
0.08, !- visible reflectance back
0.0, !- infrared_transmittance
0.84, !- emissivity front
0.84, !- emissivity back
1.0, !- conductivity {W/m-K}
1.0, !- dirt correction factor
No; !- solar diffusing
Hopefully that is helpful
best
-trevor
