How to obtain lighting load from thermal load?

[gil]

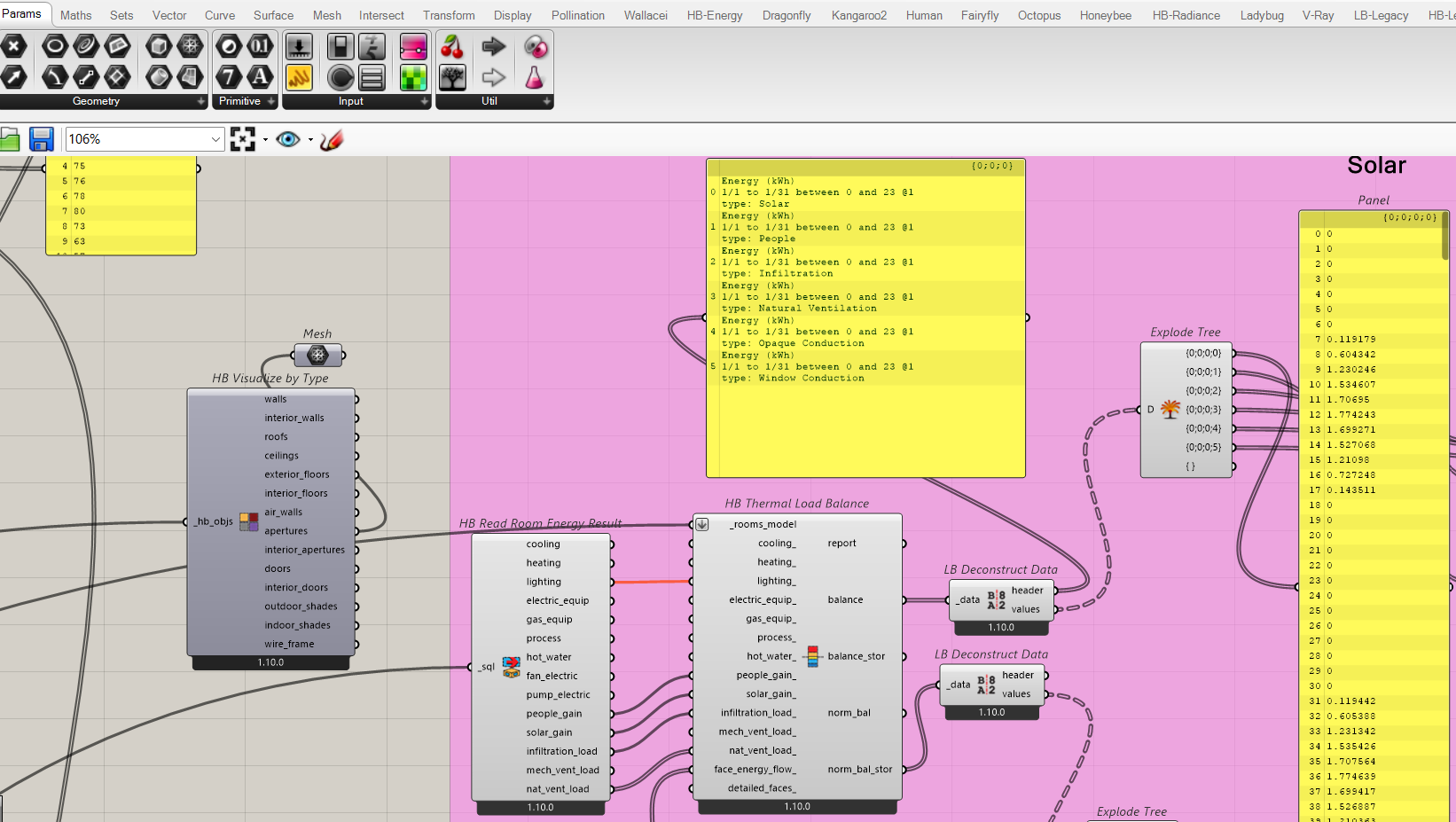

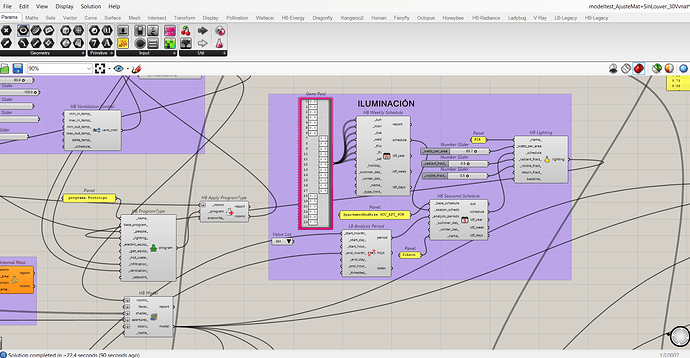

Hi¡ I introduced a lighting system in a model, but in HB thermal load doesn´t appear. I compare 2 SIM´s: without lighting and with lighting system, and I observed that the interior temperatures changes but the HB thermal load seems dont recognize the lighting system.

What can I do? I share 2 images and files

Prototipo-04.3dm (995.1 KB)

modeltest_AjusteMat+SinLouver_30Vvnat.gh (1.1 MB)

[gil]

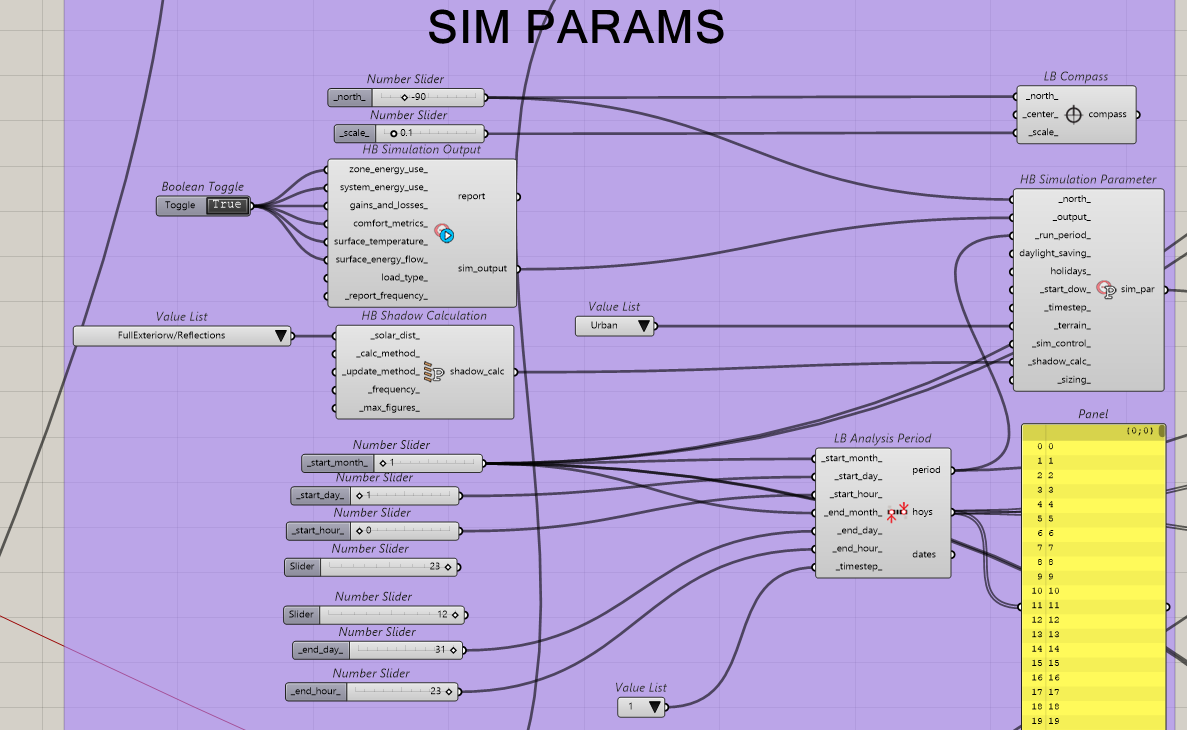

I am answering myself, anyway…maybe someone need it. I found my error. I just needed to activate the results in HB Simulation Output, Zone energy and System energy use.
