Jagged DF Heatmap result

grasshopper honeybee
1

Hello all,

the result of DF Heatmap result is jagged, though I have set the grid size to 0.1*0.1. Please check the pics below.

1
11053×892 83.3 KB

2
21282×921 72.7 KB

3

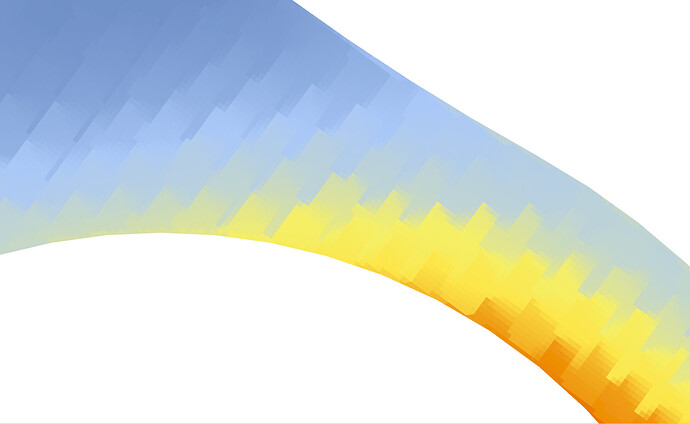

31501×923 87.5 KB

How to adjust the heatmap to smooth transition? Thanks in advance!

2

Use some better Radiance parameters. The HB Radiance Parameter component should give you good suggestions.

3

If it is just a visual thing you can blur the mesh, therefore you need to shade the vertices but not the faces.
I made a script for doing this(the forum does not allow me to post the file but can post the code if you like):

grafik
grafik1771×755 199 KB

4

Thanks for your advice, Chris!

5

@Hotte It’s very kind of you! Could you please sharing the code you mentioned? :grinning:

6

Seems that I can upload now:
20211208_MeshColor.gh (8.0 KB)

1 Like
7

Not sure if this is intended by the way?

grafik
grafik2166×1113 210 KB

8

@Hotte Thanks for your help!
