Hi,

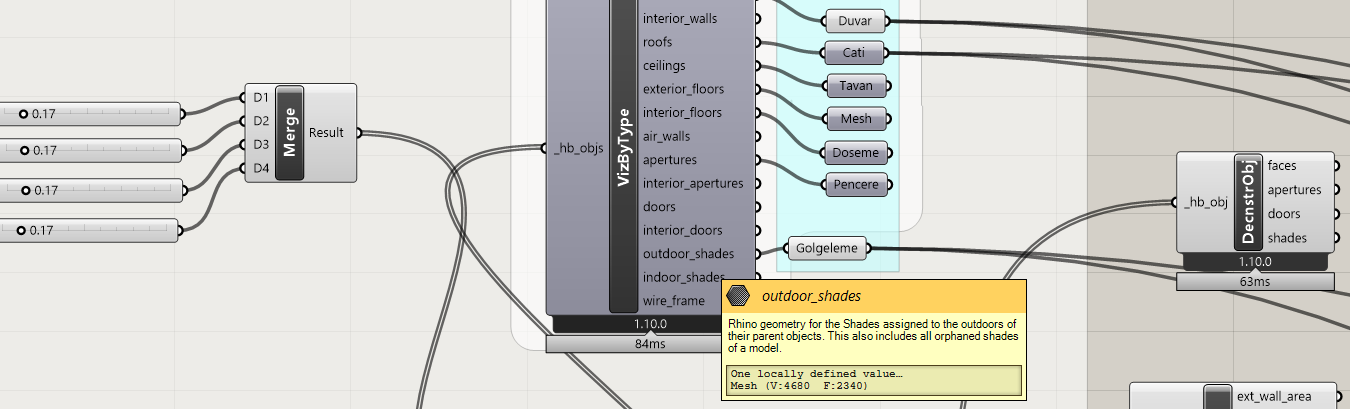

I am modelling an apartment by using honeybee components. Now, I want to connect those elements to conduct solar radiation. For the imput there are 2 options: either mesh or brep. However, the output of VizByType is mesh and by using mesh, i can not decide on grid size. To have control on gird size i want to use brep. But i got confused during the workflow.
Hi @pelinavci ,
I recommend using the HB Faces by Type component followed by HB Visualize Quick components to get Breps of the Honeybee geometry that you want to use in your radiation simulation. This is instead of using the HB Visualize by Type Component that gives you meshes.
Plugging meshes into the LB Radiation component is really only intended for the case that you have done your own custom meshing of Breps with a custom set of meshing parameters.
