Modeling Round Columns

grasshopper honeybee
,
1

Hello! I’m a beginner. I’m modeling a building in Rhino for future energy simulations, and due to a client requirement, it was necessary to model round columns. However, I don’t understand the logic of how to model them—the walls are just a simple line to later insert the thickness in Grasshopper, so would a circular column be a line too?

Thank you in advance for your help.

2

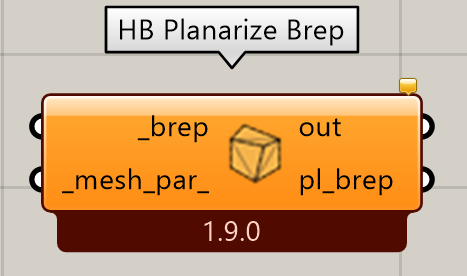

Hi @Pinzon, energyplus/openstudio don’t accept circular geometry, you can make a many sided n-gon to replace them or use HB Planarize Brep component to assist:
best
-trevor
