Kia ora tatou
We have a file that has been reconstructed from a DesignBuilder file.
It has been built by importing the .gbxml which yields really only the geometry.
We have converted everything to faces and rebuilt them as HB Faces, then created the aperture geometry as actual apertures.

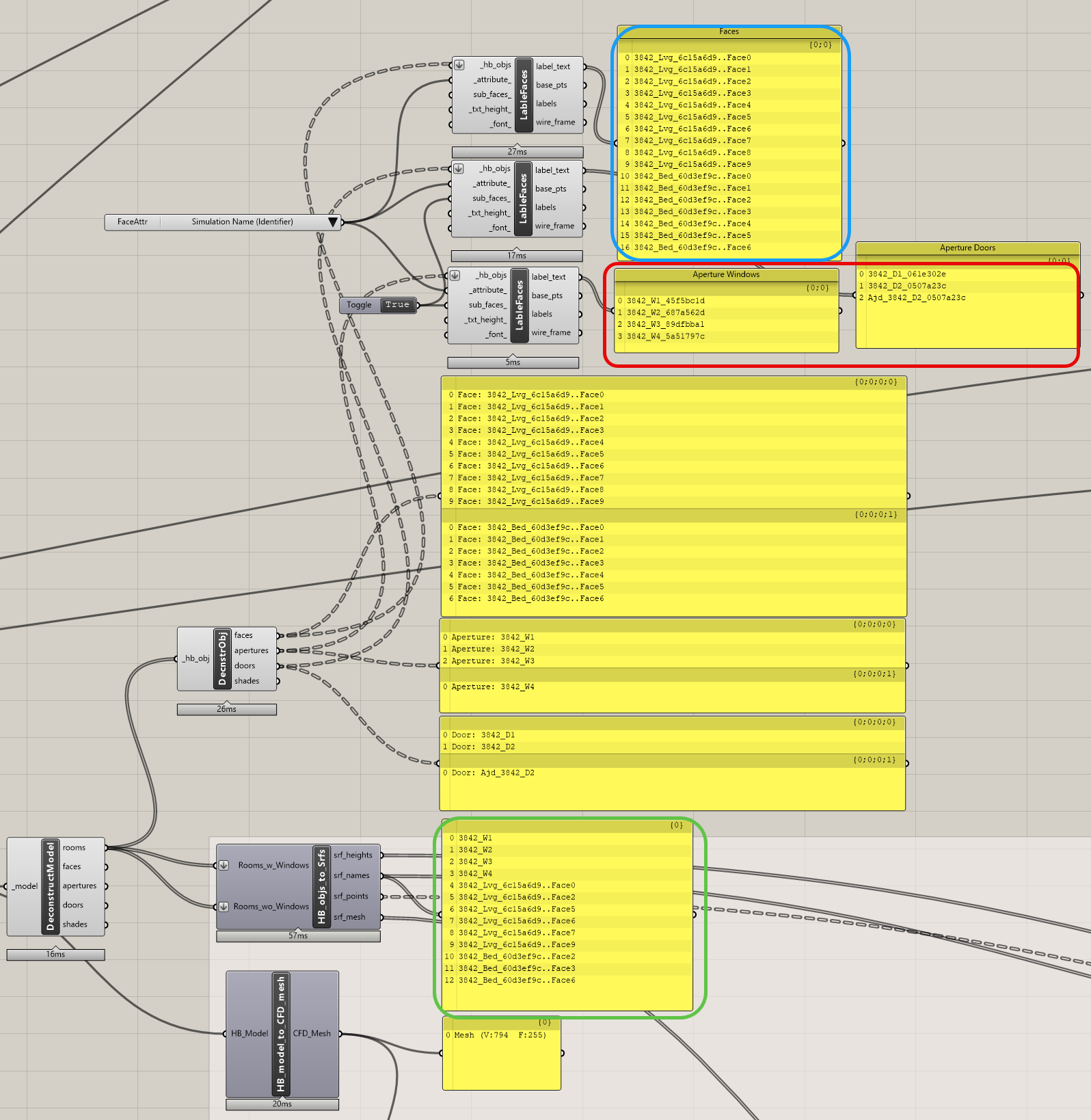

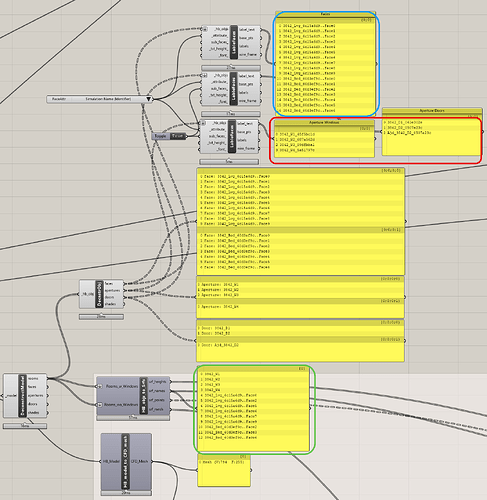

This seems to construct a model with the correct behaviour. However, in processing the rooms built from this process we appear to have objects that have a non-standard naming / identifier format. As can be seen in the parsed model below the faces have the following Simulation Name Labels construction / formatting
[BLUE BOX]
Room Name
+
Unique Identifier
+
Face Name
Our defined apertures have a slightly different order
[RED BOX]
Room Name
+
Aperture Name
+
Unique Identifier
When processing these HB objects into geometry for another process outside of Honeybee, this ordering seems critical: we get the actual full name for the faces and only the Room Name + Aperture Names for the apertures [GREEN BOX]
Any and all help welcomed
