I have done the simulation, with HB Simulation output “True” in the energy section only. when I open an Excel file. There are so many variable outputs. How do I solve this?
Hi, @adenurmap

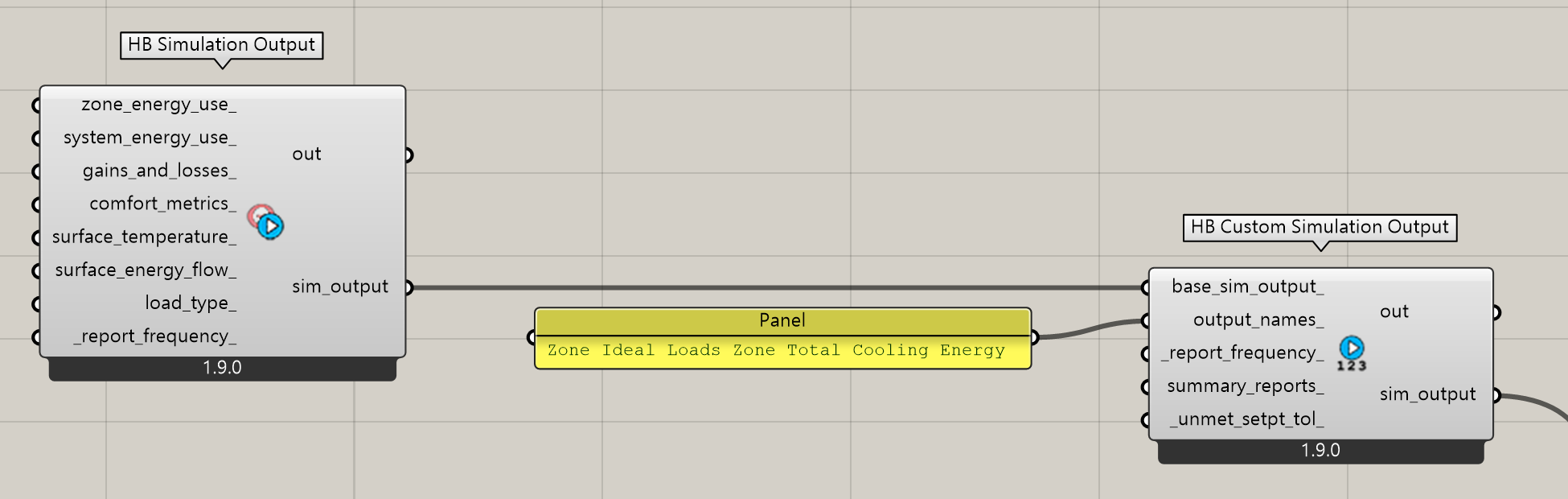

I do not know if you had solved this problem. You can use components in the picture to export the category you want.

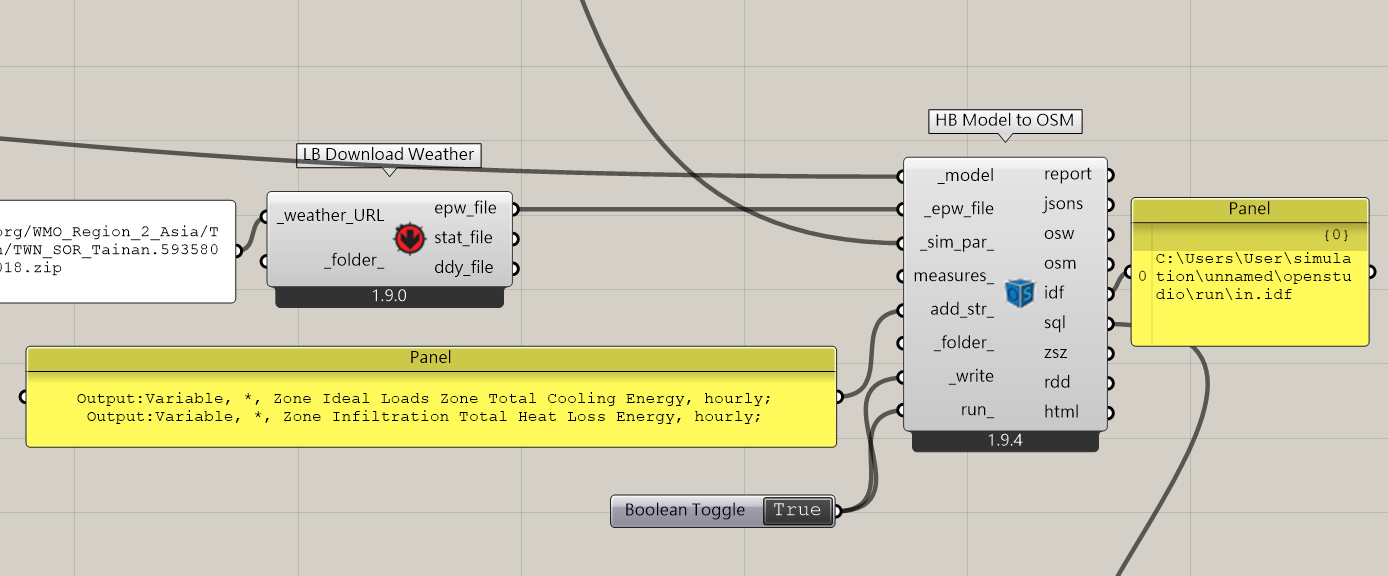

There is something I want to ask you, cause my HB Simulation output can not export an Excel file (It’s blank),so I wander is there any setting before you simulate to get output Excel file?
Thanks.
hi @670, if you input:
OutputControl:Table:Style,
Comma;

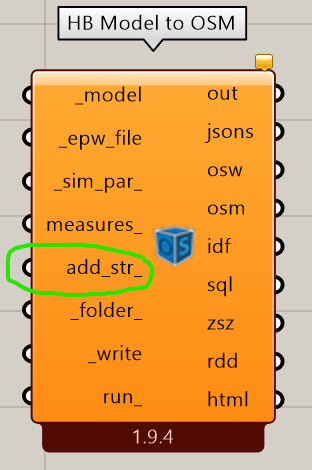

into:
you should then see timeseries data written to the eplusout.csv

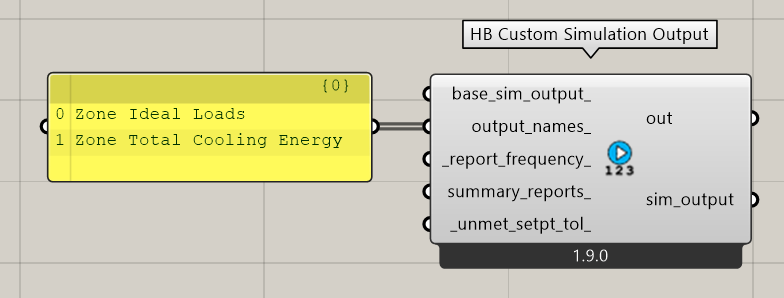

Also I believe you are supposed to input the output names as multi-line data:
best
-trevor
